Monday, October 4, 2010
Reader Ride. Sweet Parilla 250 Work In Progress.
Danilo writes in:
Love your site. Thought you'd get a kick out of my Parilla 250 project. Purchased it in Minneapolis last month, hadn't run in years. Cleaned up the points, new battery and swapped out the VHB Dellorto for the original SS1 with remote bowl that came in the parts box, gave it a couple of kicks and... Nothing. Took it out in the alley and it bump-started on the third try.
Put 50 miles on it this weekend, including a stop at Acetoberfest in Chicago. Still bumping it, but as soon as I get new points and condenser that'll be a thing of the past. When winter hits the frame goes out for checking/bracing, and then I'm going to give it the cosmetic treatment.
That's a heck of a find! Perfect starting point! Thank for the Pics!
What beautiful engine!
Love your site. Thought you'd get a kick out of my Parilla 250 project. Purchased it in Minneapolis last month, hadn't run in years. Cleaned up the points, new battery and swapped out the VHB Dellorto for the original SS1 with remote bowl that came in the parts box, gave it a couple of kicks and... Nothing. Took it out in the alley and it bump-started on the third try.
Put 50 miles on it this weekend, including a stop at Acetoberfest in Chicago. Still bumping it, but as soon as I get new points and condenser that'll be a thing of the past. When winter hits the frame goes out for checking/bracing, and then I'm going to give it the cosmetic treatment.
That's a heck of a find! Perfect starting point! Thank for the Pics!
What beautiful engine!
Sunday, October 3, 2010
New Yamaha Byson
New Yamaha Byson
Specification of New Yamaha Byson:
Dimensions Yamaha Byson:
PxLxT: 2075 mm x 780 mm x 1045 mm
Wheelbase: 1334 mm
Lowest distance to the ground: 160 mm
Seat height: 790 mm
Weight: 135 kg
Petrol tank capacity: 12 liters
Engine Yamaha Byson:
Engine type: 4 stroke, SOHC, two valve, air-cooled
Number / position of the cylinder: single cylinder / upright
Cylinder volume: 153 cm3
Diameter x measures: 58.0 x 57.9
Compression ratio: 9,50:1
Maximum power: 10.1 PS / 7500 rpm
Maximum torque: 10.5 Nm / 5500 rpm
Starter system: Electric starter and kick starter
Lubricating System: Wet
Engine oil capacity: The total 1.2-liter, 1 liter of regular turnover
Type of carburetor: Mikuni BS26X1
Type clutch: Wet, manual clutch
Transmission type: 5-speed (1-N-2-3-4-5)
Frame yamaha Byson:
Type order: Diamond
Suspension front: Telescopic
Rear suspension: Suspension Monocross
Front tire: tubeless 100/80-17M/C 52P
Rear tire: tubeless 120/70-17M/C 58P
Front brake: Disc
Rear brake: Tromol
Electrical of Yamaha Byson 2010:
DC CDI Ignition System
Battery: YTZ5S (MF Battery)
Busy type: NGK 8EA-9 CPR
New Yamaha Byson
New Yamaha Byson
Specification of New Yamaha Byson:
Dimensions Yamaha Byson:
PxLxT: 2075 mm x 780 mm x 1045 mm
Wheelbase: 1334 mm
Lowest distance to the ground: 160 mm
Seat height: 790 mm
Weight: 135 kg
Petrol tank capacity: 12 liters
Engine Yamaha Byson:
Engine type: 4 stroke, SOHC, two valve, air-cooled
Number / position of the cylinder: single cylinder / upright
Cylinder volume: 153 cm3
Diameter x measures: 58.0 x 57.9
Compression ratio: 9,50:1
Maximum power: 10.1 PS / 7500 rpm
Maximum torque: 10.5 Nm / 5500 rpm
Starter system: Electric starter and kick starter
Lubricating System: Wet
Engine oil capacity: The total 1.2-liter, 1 liter of regular turnover
Type of carburetor: Mikuni BS26X1
Type clutch: Wet, manual clutch
Transmission type: 5-speed (1-N-2-3-4-5)
Frame yamaha Byson:
Type order: Diamond
Suspension front: Telescopic
Rear suspension: Suspension Monocross
Front tire: tubeless 100/80-17M/C 52P
Rear tire: tubeless 120/70-17M/C 58P
Front brake: Disc
Rear brake: Tromol
Electrical of Yamaha Byson 2010:
DC CDI Ignition System
Battery: YTZ5S (MF Battery)
Busy type: NGK 8EA-9 CPR
NEW DUCATI MONSTER 1100
Known as the Ferrari of the motorcycle industry and said to be the embodiment of perfection, Ducati motorcycles are still likely to be further improved. Motocorse, an Italian company specialized in producing aftermarket parts for sportbikes, recently introduced its latest creation, the Ducati Monster 1100 Titanium, motoblog.it reported.The Ducati Monster in titanium includes both mechanical and stylistic upgrades. It is an unique model with a hugely reduced weight and greater performance. The Monster Titanium has a black tint with red finish and titanium, and parts made of carbon fibre which reduce weight to 156 kg.
Over 60 standard Ducati components have been replaced. The exhaust is a titanium Motocorse Evoluzione 54mm and the modifications to the engine now brings performance figures to 102.6 hp and 113 Nm, up from 95 hp and 103 Nm.
The brake discs are made from composite ceramic materials and measure 320 mm. They pair with Brembo Racing calipers and titanium pistons on a Motocorse radial mount.
Forged aluminum Marchesini wheels are included, and a full set of various titanium bolts and screws, with adjustable foot pegs on their own reduce weight by 12 kg. Motocorse offer two personalisation programs: Kit One Full Upgrade or Kit Two Standard Upgrade, and will also do the paint finish and assemble the parts.
NEW DUCATI MONSTER 1100
Known as the Ferrari of the motorcycle industry and said to be the embodiment of perfection, Ducati motorcycles are still likely to be further improved. Motocorse, an Italian company specialized in producing aftermarket parts for sportbikes, recently introduced its latest creation, the Ducati Monster 1100 Titanium, motoblog.it reported.The Ducati Monster in titanium includes both mechanical and stylistic upgrades. It is an unique model with a hugely reduced weight and greater performance. The Monster Titanium has a black tint with red finish and titanium, and parts made of carbon fibre which reduce weight to 156 kg.
Over 60 standard Ducati components have been replaced. The exhaust is a titanium Motocorse Evoluzione 54mm and the modifications to the engine now brings performance figures to 102.6 hp and 113 Nm, up from 95 hp and 103 Nm.
The brake discs are made from composite ceramic materials and measure 320 mm. They pair with Brembo Racing calipers and titanium pistons on a Motocorse radial mount.
Forged aluminum Marchesini wheels are included, and a full set of various titanium bolts and screws, with adjustable foot pegs on their own reduce weight by 12 kg. Motocorse offer two personalisation programs: Kit One Full Upgrade or Kit Two Standard Upgrade, and will also do the paint finish and assemble the parts.
UPDATE!! Tasty BMW Tracker
Update! From our old friend Stuman! AKA Mike 'Stu' Stuhler. Check out his blog at http://stusshots.blogspot.com/
http://pwheelie.blogspot.com/2010_09_01_archive.html#6072330486351866165
This is one of Ron Woods' projects. Matt Weidman tried to make the mile at Arizona back on 5/1 with this but missed the field. He's supposed to run it again on Saturday 10/9 and try to get it in the National again after Ron got the bugs worked out of it.
Very sweet looking machine! With the rules being 'opened up' in AMA Flat Track this year it has made for some very interesting combinations, as 12 different manufacturers and their respective models are available to race in the Grand National Expert Twins Class. Earlier this year not only did a Ducati 1098 win--at Arizona with Joe Kopp--but Bill Werner, Jay Springsteen and Bryan Smith took a Kawasaki 650 Ninja-based parallel twin to the win here at Indy and at Springfield. Jeremy Higgins put a KTM in the main at Minnesota a couple of weeks ago, and Triumph put together a nice package based on the 865 Bonneville and has made four mains this year.
Very cool stuff, and as always Steve, you have kept things on the cutting edge here man! Keep up the great work!
Awesome! Thanks for that!
I think I posted something on this bike a long while back but I'm not positive. Really excellent build. Your eyes are not playing tricks. The front shock mount is in fact on the rear of the cylinder. Bold stuff.
http://pwheelie.blogspot.com/2010_09_01_archive.html#6072330486351866165
This is one of Ron Woods' projects. Matt Weidman tried to make the mile at Arizona back on 5/1 with this but missed the field. He's supposed to run it again on Saturday 10/9 and try to get it in the National again after Ron got the bugs worked out of it.
Very sweet looking machine! With the rules being 'opened up' in AMA Flat Track this year it has made for some very interesting combinations, as 12 different manufacturers and their respective models are available to race in the Grand National Expert Twins Class. Earlier this year not only did a Ducati 1098 win--at Arizona with Joe Kopp--but Bill Werner, Jay Springsteen and Bryan Smith took a Kawasaki 650 Ninja-based parallel twin to the win here at Indy and at Springfield. Jeremy Higgins put a KTM in the main at Minnesota a couple of weeks ago, and Triumph put together a nice package based on the 865 Bonneville and has made four mains this year.
Very cool stuff, and as always Steve, you have kept things on the cutting edge here man! Keep up the great work!
Awesome! Thanks for that!
I think I posted something on this bike a long while back but I'm not positive. Really excellent build. Your eyes are not playing tricks. The front shock mount is in fact on the rear of the cylinder. Bold stuff.
HONDA CBR1000RR 2010
Honda UK has unveiled today two CBR1000RR Fireblades Special Editions - one ‘Hutchy’ and one ‘McGuinness’ – to commemorate the achievements of these two legendary TT road racers. Both bikes feature awesome special-edition paintwork celebrating Honda’s amazingly successful Isle of Man TT campaigns with two record-breaking riders: Ian Hutchinson and John McGuinness.
Ian Hutchinson tore-up the record books at this year’s TT races with an unprecedented five out of five solo wins in the Superbike, Superstock, Senior and two Supersport races. To mark his success on his Padgetts Honda race bikes, the ‘Hutchy’ CBR1000RR celebrates that amazing feat with a brilliant pearlescent white paint scheme that features a map of the 37.73-mile Isle of Man TT course, outlined around the top of the bike. A red line faithfully follows the twists and turns of the historic mountain course, complete with corner names. Both side fairings of the Fireblade are emblazoned with a commemorative decal illustrating all five of Hutchinson’s victories at this year’s TT races and, his overall TT Championship victory. There is also Ian’s unique ‘Hutchy’ graphic on the tank, along with his signature.
The John McGuinness special-edition makes an ingenious play on the fastest man around the TT course’s name. John has traditionally used a representation of a pint of the black stuff on the back of his leathers, and the ‘McGuinness’ CBR1000RR takes this a stage further by turning the Fireblade into a two-wheeled pint of it! A beautiful and intricate paint-scheme replicates the look of a pint, complete with dew-drops of condensation on the fairings and the creamy white head that only the perfectly poured pint has. John’s bike is also adorned on the fairings with a gold map of the TT course and his lap record of 131.578mph and, each bike is also autographed by John, enhancing its exclusivity even further.
Both riders are made up that their Island exploits are being celebrated in such a way. Hutchy said: “It’s exciting and really nice of Honda to make these Special Edition bikes. Better still, I’ve been given the first one which is such a lovely gesture. It’s an awesome bike to ride the Fireblade – how we did in the Superstock race shows how good it is. I won’t be riding mine though: it will be going straight in the living room! On the paintwork, the skill and attention to detail is just stunning. When you go up close, you can see just how pearlescent the white paint is, it’s an amazing piece of work.”
McGuinness remarked: “I’m so proud to have a Special Edition bike like this. I’m honoured that Honda has recognised my achievements at the TT in this way and it cheers me up after a 2010 Isle of Man campaign that was hit by bad luck. I feel part of the Fireblade programme now with my wins on the current ‘Blade and previous versions, so it’s very special to know people can buy this bike. With the one that Honda has given me, like Hutchy, I’m not going to use it, it will join my collection. I’ve got an older style ‘Blade, a V-twin SP-1 and a number of other Hondas. I’m always going to keep hold of it. The paintwork is amazing and every owner’s bike will be unique, as each of the bubbles on the bodywork is done by hand and different every time. It’s a work of art.”
Both bikes are available now to order, from Honda motorcycle dealerships across the country, in both standard and ABS-equipped versions. The ‘Hutchy’ or ‘McGuinness’ Special Edition ‘Blades are just £1,000 above current Fireblade on-the-road prices, meaning these truly memorable editions are priced at £11,725 OTR, or £12,375 OTR with the added comfort of Honda’s amazing electronically-controlled C-ABS braking system developed specifically for sports bikes. Both machines are also available with Honda’s current great 0% APR and 2/9% APR finance offers which end on 30 September 2010.
HONDA CBR1000RR (2007)
The awesome CBR1000®RR packs MotoGP technology into a Superbike equally at home on the racetrack as it is on the streets.
Features & Benefits
New for 2007
- Black-painted swingarm adds aggressive new look.
- Exciting new colors Black/Metallic Gray and Light Silver Metallic join Red/Black.
Unique features
- Liquid-cooled 998cc inline four-cylinder engine.
- Aluminum frame patterned after the RC211V® MotoGP machine.
- Honda Electronic Steering Damper (HESD) for optimum steering effort and stability.
- Cassette-type close-ratio six-speed transmission.
- Centrally located fuel tank increases mass centralization and allows more compact frame design.
- Radial-mounted front brakes.
- Center-up exhaust system.
- Unit Pro-Link™ rear suspension and swingarm design inspired by RC211V.
- Line-beam headlight features three-piece reflector design.
- Dual Stage Fuel Injection (DSFI) system features two injectors per cylinder.
- Aggressive styling based on the championship-winning RC211V MotoGP machine.
Engine/Drivetrain
- Liquid-cooled DOHC 16-valve 998cc four-stroke inline four-cylinder engine features bore-and-stroke dimensions of 75mm x 56.5mm.
- Sixteen-valve cylinder head features 29mm intake and 24mm exhaust valves with a 12.2:1 compression ratio for efficient combustion and high horsepower.
- Intake valve features double-spring design for optimum performance at high rpm.
- Direct shim-under-bucket valve actuation system ensures high-rpm durability and allows 16,000-mile valve maintenance intervals.
- Lightweight nutless connecting rods.
- Iridium-tip spark plugs improve fuel combustion and performance.
- DSFI system features two injectors per cylinder--one upper and one lower--controlled by an electronic control unit (ECU) that senses rpm and throttle opening. Lower injector enhances rideability while upper injector improves top-end horsepower. At lower rpm only the lower injector is working. At higher rpm, both injectors are activated. The system uses 44mm throttle bodies.
- Denso injectors with lightweight valving for faster reaction time and 12 holes per injector improve atomization of fuel mixture for optimum combustion efficiency and power.
- Auto-enriching system is integrated into programmed fuel injection (PGM-FI) module, eliminating the need for a manual choke.
- Forged aluminum pistons with moly surface treatment for reduced friction.
- Aluminum composite cylinder sleeves are high-pressure-formed from sintered aluminum powder impregnated with ceramic and graphite. The lightweight composite sleeves provide better wear resistance and superior heat dissipation compared to conventional sleeves.
- ECU provides two digital 3-D fuel-injection maps for each cylinder and two digital 3-D ignition maps for cylinder pairs, creating ideal fuel mixture and spark advance settings for superb rideability.
- Ram-air system allows high volume of cool air to the 8.35-liter airbox for linear power delivery and incredible engine performance.
- Stainless steel four-into-two-into-one center-up exhaust with twin outlets and titanium core increases lean angle and reduces wind drag.
- Liquid-cooled aluminum oil cooler is lightweight and efficient.
- Magnesium ACG cover for lighter weight.
- Maintenance-free automatic cam-chain tensioner.
- Starter gears located on the right side to produce narrow engine and increased lean angle.
- Eight-plate clutch is compact and tough, featuring durable friction plate material.
- Cassette-type, close-ratio six-speed transmission is easily accessible for rapid gear ratio changes and maintenance at the race track.
- Durable #530 O-ring-sealed drive chain.
Chassis/Suspension
- Lightweight, twin-spar aluminum frame utilizes RC211V technology.
- Aluminum-hybrid rear swingarm is longest in class for superior traction under hard acceleration.
- New aluminum subframe is lightweight and easily removed for ease of maintenance.
- HESD is a rotary-type steering damper that electronically modulates steering damping based on road speed and acceleration. An ECU senses road speed and acceleration and then sends a signal to a solenoid. The solenoid controls an oil-pressure relief valve within the damper unit. At slower speeds the relief valve is open, allowing for a free flow of oil through the damper unit, resulting in reduced damping force and lighter steering effort. At higher speeds the flow of oil is restricted, resulting in increased damping force and additional stability. HESD is the first steering-damping system that makes it possible to increase high-speed performance while maintaining low-speed handling.
- 43mm inverted aluminum-slider Honda Multi-Action System (HMAS) cartridge front fork features spring preload and rebound and compression damping adjustability, and offers precise action and unparalleled rigidity.
- Unit Pro-Link rear suspension system is patterned after the RC211V MotoGP machine. In this system, the upper shock mount is contained within the swingarm rather than the frame. With no top frame mount for the shock, this unique system reduces negative suspension energy from being transmitted into the frame, allowing optimum frame rigidity and improved rideability out of corners. The HMAS shock offers rebound and compression damping and spring preload adjustability.
- Front-brake system features radial-mounted four-piston calipers and 320mm floating discs, and a 220mm rear disc with a single-piston caliper for exceptional stopping power.
- Super-light, aluminum-alloy hollow-spoke wheels feature race-spec 3.5 x 17-inch front and 6.0 x 17-inch rear dimensions.
- Centrally mounted 4.8-gallon fuel tank is positioned low in the frame, increasing mass centralization and allowing a more compact design. This design positions the rider farther forward for optimum handling.
Additional Features
- High-capacity 350-watt AC generator.
- High-tech instrument display features tachometer, LCD readouts for speedometer, coolant temperature, odometer, two tripmeters and a clock. A low-fuel LED light and shift-indicator light is located in the tachometer.
- Line-beam headlight features three-piece reflector design utilizing two H7 bulbs for optimum light distribution and unique compact design.
- LED taillights for improved appearance.
- Plastic tank shell cover protects tank and airbox.
- One-piece fan assembly increases cooling efficiency.
- Convenient ignition switch/fork lock for added security.
- Folding aerodynamic mirrors.
- Handlebar switches and controls use internationally approved ISO graphic symbols.
- Convenient push-to-cancel turn-signal switch.
- Maintenance-free battery.
- Transferable one-year, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.
- Purchase of a new, previously unregistered Honda unit by an individual retail user in the United States qualifies the owner for a one-year complimentary membership in the Honda Rider's Club of America® (HRCA®). Benefits include roadside assistance, online access to the Honda Common Service Manual, six issues of the bimonthly Honda Red Rider™ magazine, travel discounts, trip routing and MSF reimbursement, plus access to the HRCA Web site (www.hrca.honda.com). For details on the HRCA, dealers should call (310) 783-3958, 8:30 a.m. to 5 p.m. Pacific Time.
Available accessories
- Passenger Seat Cowl (color-matched).
Specifications
Model: CBR1000RR
Engine Type: 998cc liquid-cooled inline four-cylinder
Bore and Stroke: 75mm x 56.5mm
Compression Ratio: 12.2:1
Valve Train: DOHC; four valves per cylinder
Carburetion: Dual Stage Fuel Injection (DSFI)
Ignition: Computer-controlled digital transistorized with three-dimensional mapping
Transmission: Cassette-type, close-ratio six-speed
Final Drive: #530 O-ring-sealed chain
Suspension
Front: 43mm inverted HMAS cartridge fork with spring preload, rebound and compression damping adjustability; 4.7 inches travel
Rear: HMAS Pro-Link single shock with spring preload, rebound and compression damping adjustability; 5.3 inches travel
Brakes
Front: Dual full-floating 320mm discs with four-piston radial-mounted calipers
Rear: Single 220mm disc with single-piston caliper
Tires
Front: 120/70ZR-17 radial
Rear: 190/50ZR-17 radial
Wheelbase: 55.2 inches
Rake (Caster Angle): 23.45°
Trail: 100mm (3.9 inches)
Seat Height: 32.3 inches
Dry Weight: 388 pounds
Fuel Capacity: 4.8 gallons, including 1.06-gallon reserve
Colors: Black Metallic Gray, Light Silver Metallic, Red/Black
Meets current EPA standards.
California version meets current CARB standards and may differ slightly due to emissions equipment.
Features & Benefits
New for 2007
- Black-painted swingarm adds aggressive new look.
- Exciting new colors Black/Metallic Gray and Light Silver Metallic join Red/Black.
Unique features
- Liquid-cooled 998cc inline four-cylinder engine.
- Aluminum frame patterned after the RC211V® MotoGP machine.
- Honda Electronic Steering Damper (HESD) for optimum steering effort and stability.
- Cassette-type close-ratio six-speed transmission.
- Centrally located fuel tank increases mass centralization and allows more compact frame design.
- Radial-mounted front brakes.
- Center-up exhaust system.
- Unit Pro-Link™ rear suspension and swingarm design inspired by RC211V.
- Line-beam headlight features three-piece reflector design.
- Dual Stage Fuel Injection (DSFI) system features two injectors per cylinder.
- Aggressive styling based on the championship-winning RC211V MotoGP machine.
Engine/Drivetrain
- Liquid-cooled DOHC 16-valve 998cc four-stroke inline four-cylinder engine features bore-and-stroke dimensions of 75mm x 56.5mm.
- Sixteen-valve cylinder head features 29mm intake and 24mm exhaust valves with a 12.2:1 compression ratio for efficient combustion and high horsepower.
- Intake valve features double-spring design for optimum performance at high rpm.
- Direct shim-under-bucket valve actuation system ensures high-rpm durability and allows 16,000-mile valve maintenance intervals.
- Lightweight nutless connecting rods.
- Iridium-tip spark plugs improve fuel combustion and performance.
- DSFI system features two injectors per cylinder--one upper and one lower--controlled by an electronic control unit (ECU) that senses rpm and throttle opening. Lower injector enhances rideability while upper injector improves top-end horsepower. At lower rpm only the lower injector is working. At higher rpm, both injectors are activated. The system uses 44mm throttle bodies.
- Denso injectors with lightweight valving for faster reaction time and 12 holes per injector improve atomization of fuel mixture for optimum combustion efficiency and power.
- Auto-enriching system is integrated into programmed fuel injection (PGM-FI) module, eliminating the need for a manual choke.
- Forged aluminum pistons with moly surface treatment for reduced friction.
- Aluminum composite cylinder sleeves are high-pressure-formed from sintered aluminum powder impregnated with ceramic and graphite. The lightweight composite sleeves provide better wear resistance and superior heat dissipation compared to conventional sleeves.
- ECU provides two digital 3-D fuel-injection maps for each cylinder and two digital 3-D ignition maps for cylinder pairs, creating ideal fuel mixture and spark advance settings for superb rideability.
- Ram-air system allows high volume of cool air to the 8.35-liter airbox for linear power delivery and incredible engine performance.
- Stainless steel four-into-two-into-one center-up exhaust with twin outlets and titanium core increases lean angle and reduces wind drag.
- Liquid-cooled aluminum oil cooler is lightweight and efficient.
- Magnesium ACG cover for lighter weight.
- Maintenance-free automatic cam-chain tensioner.
- Starter gears located on the right side to produce narrow engine and increased lean angle.
- Eight-plate clutch is compact and tough, featuring durable friction plate material.
- Cassette-type, close-ratio six-speed transmission is easily accessible for rapid gear ratio changes and maintenance at the race track.
- Durable #530 O-ring-sealed drive chain.
Chassis/Suspension
- Lightweight, twin-spar aluminum frame utilizes RC211V technology.
- Aluminum-hybrid rear swingarm is longest in class for superior traction under hard acceleration.
- New aluminum subframe is lightweight and easily removed for ease of maintenance.
- HESD is a rotary-type steering damper that electronically modulates steering damping based on road speed and acceleration. An ECU senses road speed and acceleration and then sends a signal to a solenoid. The solenoid controls an oil-pressure relief valve within the damper unit. At slower speeds the relief valve is open, allowing for a free flow of oil through the damper unit, resulting in reduced damping force and lighter steering effort. At higher speeds the flow of oil is restricted, resulting in increased damping force and additional stability. HESD is the first steering-damping system that makes it possible to increase high-speed performance while maintaining low-speed handling.
- 43mm inverted aluminum-slider Honda Multi-Action System (HMAS) cartridge front fork features spring preload and rebound and compression damping adjustability, and offers precise action and unparalleled rigidity.
- Unit Pro-Link rear suspension system is patterned after the RC211V MotoGP machine. In this system, the upper shock mount is contained within the swingarm rather than the frame. With no top frame mount for the shock, this unique system reduces negative suspension energy from being transmitted into the frame, allowing optimum frame rigidity and improved rideability out of corners. The HMAS shock offers rebound and compression damping and spring preload adjustability.
- Front-brake system features radial-mounted four-piston calipers and 320mm floating discs, and a 220mm rear disc with a single-piston caliper for exceptional stopping power.
- Super-light, aluminum-alloy hollow-spoke wheels feature race-spec 3.5 x 17-inch front and 6.0 x 17-inch rear dimensions.
- Centrally mounted 4.8-gallon fuel tank is positioned low in the frame, increasing mass centralization and allowing a more compact design. This design positions the rider farther forward for optimum handling.
Additional Features
- High-capacity 350-watt AC generator.
- High-tech instrument display features tachometer, LCD readouts for speedometer, coolant temperature, odometer, two tripmeters and a clock. A low-fuel LED light and shift-indicator light is located in the tachometer.
- Line-beam headlight features three-piece reflector design utilizing two H7 bulbs for optimum light distribution and unique compact design.
- LED taillights for improved appearance.
- Plastic tank shell cover protects tank and airbox.
- One-piece fan assembly increases cooling efficiency.
- Convenient ignition switch/fork lock for added security.
- Folding aerodynamic mirrors.
- Handlebar switches and controls use internationally approved ISO graphic symbols.
- Convenient push-to-cancel turn-signal switch.
- Maintenance-free battery.
- Transferable one-year, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.
- Purchase of a new, previously unregistered Honda unit by an individual retail user in the United States qualifies the owner for a one-year complimentary membership in the Honda Rider's Club of America® (HRCA®). Benefits include roadside assistance, online access to the Honda Common Service Manual, six issues of the bimonthly Honda Red Rider™ magazine, travel discounts, trip routing and MSF reimbursement, plus access to the HRCA Web site (www.hrca.honda.com). For details on the HRCA, dealers should call (310) 783-3958, 8:30 a.m. to 5 p.m. Pacific Time.
Available accessories
- Passenger Seat Cowl (color-matched).
Specifications
Model: CBR1000RR
Engine Type: 998cc liquid-cooled inline four-cylinder
Bore and Stroke: 75mm x 56.5mm
Compression Ratio: 12.2:1
Valve Train: DOHC; four valves per cylinder
Carburetion: Dual Stage Fuel Injection (DSFI)
Ignition: Computer-controlled digital transistorized with three-dimensional mapping
Transmission: Cassette-type, close-ratio six-speed
Final Drive: #530 O-ring-sealed chain
Suspension
Front: 43mm inverted HMAS cartridge fork with spring preload, rebound and compression damping adjustability; 4.7 inches travel
Rear: HMAS Pro-Link single shock with spring preload, rebound and compression damping adjustability; 5.3 inches travel
Brakes
Front: Dual full-floating 320mm discs with four-piston radial-mounted calipers
Rear: Single 220mm disc with single-piston caliper
Tires
Front: 120/70ZR-17 radial
Rear: 190/50ZR-17 radial
Wheelbase: 55.2 inches
Rake (Caster Angle): 23.45°
Trail: 100mm (3.9 inches)
Seat Height: 32.3 inches
Dry Weight: 388 pounds
Fuel Capacity: 4.8 gallons, including 1.06-gallon reserve
Colors: Black Metallic Gray, Light Silver Metallic, Red/Black
Meets current EPA standards.
California version meets current CARB standards and may differ slightly due to emissions equipment.
XR1200X HARLEY-DAVIDSON
As hard as it may be to believe, Harley-Davidson’s XR1200X model was only available in Europe ever since it was introduced a year ago, keeping Americans away from the bike’s 74 pound-feet of torque at 4000 rpm and 40-degree lean angle, not to mention the impressive looks. But it is all over now that Harley announced that the 2011 model year comes stateside (how does that even sound considering the American company’s huge fan clubs stretching from coast to coast).
For a price of $11,799, the 2011 Harley-Davidson XR1200X offers a lot. To begin with, the sports bike features Showa Big Piston front forks with adjustable rebound, compression and preload working together with the dual Showa rear shocks with 36mm pistons and piggyback nitrogen-charged reservoirs. Also, the front brakes – 292mm full-floating rotors and four-piston calipers – are supplied by Nissin.
But this bike is definitely all about the looks and with the rider positioned in a rather sporty riding position – at 29.2 inches from the ground, gripping on rear-mount pegs and holding on to dirt track-style handlebars – it will most likely be a hit in the States as well. So the question remains: why would H-D test the old continent market before introducing the bike here? Anyway, colors available for 2011 are Black Denim and White Hot Denim.
Press Release
XR1200X™ TAKES SPORTSTER® PERFORMANCE TO A NEW LEVEL
Fully-Adjustable Premium Suspension and Full-Floating Front Brake Rotors
The XR1200X is Harley-Davidson® Sportster performance honed to its finest edge. Introduced in 2010 for export markets only, the XR1200X will be available through Harley-Davidson dealers in the United States as a 2011 model. Equipped with fully-adjustable Showa® front and rear suspension components, the 2011 XR1200X can be dialed in to match rider weight, riding style and road conditions. The XR1200X combines this premium suspension with enhanced front brakes and the responsive punch of a high-compression, 1200cc Evolution® V-Twin engine in a dynamic, street-performance motorcycle.
With a tank and tail section designed to evoke the legendary Harley-Davidson XR750 – the king of the gritty American flat-track scene – the XR1200X puts its mechanical character on display. Wide flat-track bars and rearset footpegs position an assertive rider for active control. The XR1200X has a blacked-out powertrain and exhaust, revised tank graphics, and black wheels with an orange rim pinstripe. The XR1200X will be offered in two colors: Black Denim and White Hot Denim.
Key XR1200X Features
= Showa Big Piston Front fork (BPF) eliminates many of the internal components used in a cartridge-type fork, resulting in lighter overall fork weight. The large-diameter of the BPF internal piston allows a reduction in damping pressure for outstanding feedback and smooth action. Rebound and compression damping may be fine tuned with adjuster screws located on top of the fork bolts. The spring pre-load is adjusted with a M5 hex screw on the axle holders.
= Showa rear shocks feature 36mm pistons with piggy-back nitrogen charged reservoirs. The compression damping may be adjusted with a knob on top of the reservoir. Rebound is adjusted with a thumb wheel on the lower clevis. Rear spring pre-load is also adjustable.
= Nissin® dual front brakes feature 292mm full-floating rotors and four-piston calipers.
= Isolation-mounted XL Evolution 1200 cc V-Twin engine with black powdercoat finish features downdraft Electronic Sequential Port Fuel Injection (ESPFI), high-performance camshafts, precision oil-cooled cylinder heads and a large-capacity oil cooler. Compression ratio is 10:1. The engine is rated at 74 ft. lbs. peak torque @ 4000 rpm (per SAE J1349).
= Upswept, high-volume 2-1-2 straight-shot exhaust system with satin black finish offers extra cornering clearance.
= Chassis features a high-performance designed tubular mild steel frame. The rigid, cast-aluminum swingarm is engineered to enhance handling.
= Dunlop® Qualifier D209 tires were designed specifically for the XR1200X.
= Three-spoke lightweight cast-aluminum wheels, 18-inch front / 17-inch rear, are finished in gloss black with an orange pinstripe on the rim.
= Wide, black dirt-track handlebar for enhanced steering leverage and comfort.
= Rearset foot pegs for additional cornering clearance.
= Compact instrument display with white-faced analog tachometer, digital speedometer, dual trip meter and clock.
= 3.5-gallon fuel tank with aircraft-style aluminum alloy fuel filler.
= 29.2-inch seat height with standard passenger pillion and foot pegs.
= Optional Harley-Davidson® Smart Security System.
Harley-Davidson Motor Company produces heavyweight custom, cruiser and touring motorcycles and offers a complete line of Harley-Davidson motorcycle parts, accessories, riding gear and apparel, and general merchandise.

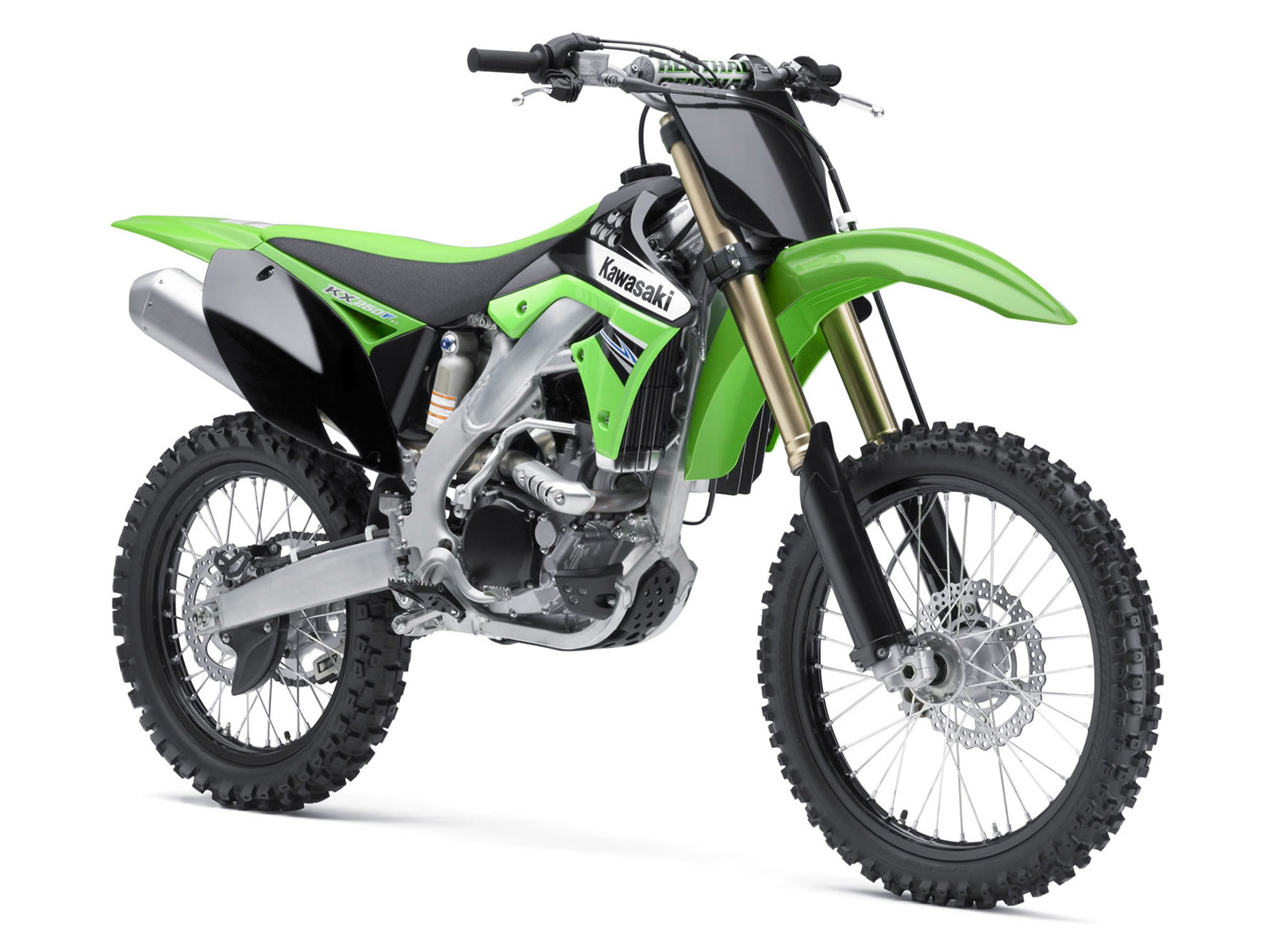

KAWASAKI KX 250F (2011)
More AMA Lites Championships than any Motorcycle in History!
It’s an old refrain: The factory guys get all the good stuff. Their bikes are faster, lighter and just plain tricker than the motocrossers you can buy off the showroom floor. There’s some truth there. But that’s changing. The gap between production and factory-prepped motocrossers has never been narrower. And with the introduction of Kawasaki’s massively reworked 2011 KX™250F, that gap just shrank a little more
Specifications
MSRP: $7,299
ENGINE
Engine: Four-stroke single with DOHC and four valves
Displacement: 249cc
Bore x stroke: 77.0 x 53.6mm
Cooling System: Liquid
Fuel injection: 43mm Keihin throttle body
Compression ratio: 13.5: 1
Ignition: Digital DC-CDI
Transmission: Five-speed with wet multi-disc manual clutch
Final drive: Chain
Frame Type: Aluminum perimeter
Rake/Trail: 28.2 degrees / 4.7 in.
Front suspension / wheel travel: 47mm inverted Showa SFF telescopic fork with spring preload adjustability and 22 position compression and 20 position rebound damping adjustability/ 12.4 in.
Rear suspension / wheel travel: Uni-Trak® linkage system and Showa shock with 19 position low-speed and stepless high-speed compression damping, 22 position rebound damping and fully adjustable spring preload / 12.2 in.
Front Tire Size: 80/100-21
Rear Tire Size: 100/90-19
Front brakes: Single semi-floating 250mm petal disc with dual piston caliper
Rear Brakes: Single 240mm petal disc with single-piston caliper
Overall length: 85.4 in.
Overall width: 32.3 in.
Overall height: 50.0 in.
Wheelbase: 58.1 in.
Ground Clearance: 13.0 in.
Seat height: 37.2 in.
Curb weight: 232.7 lbs.
Fuel capacity: 1.9 gal.
Color Choices: Lime Green
It’s an old refrain: The factory guys get all the good stuff. Their bikes are faster, lighter and just plain tricker than the motocrossers you can buy off the showroom floor. There’s some truth there. But that’s changing. The gap between production and factory-prepped motocrossers has never been narrower. And with the introduction of Kawasaki’s massively reworked 2011 KX™250F, that gap just shrank a little more
Specifications
MSRP: $7,299
ENGINE
Engine: Four-stroke single with DOHC and four valves
Displacement: 249cc
Bore x stroke: 77.0 x 53.6mm
Cooling System: Liquid
Fuel injection: 43mm Keihin throttle body
Compression ratio: 13.5: 1
Ignition: Digital DC-CDI
Transmission: Five-speed with wet multi-disc manual clutch
Final drive: Chain
Frame Type: Aluminum perimeter
Rake/Trail: 28.2 degrees / 4.7 in.
Front suspension / wheel travel: 47mm inverted Showa SFF telescopic fork with spring preload adjustability and 22 position compression and 20 position rebound damping adjustability/ 12.4 in.
Rear suspension / wheel travel: Uni-Trak® linkage system and Showa shock with 19 position low-speed and stepless high-speed compression damping, 22 position rebound damping and fully adjustable spring preload / 12.2 in.
Front Tire Size: 80/100-21
Rear Tire Size: 100/90-19
Front brakes: Single semi-floating 250mm petal disc with dual piston caliper
Rear Brakes: Single 240mm petal disc with single-piston caliper
Overall length: 85.4 in.
Overall width: 32.3 in.
Overall height: 50.0 in.
Wheelbase: 58.1 in.
Ground Clearance: 13.0 in.
Seat height: 37.2 in.
Curb weight: 232.7 lbs.
Fuel capacity: 1.9 gal.
Color Choices: Lime Green
Detail and Features KAWASAKI KX 250F
At a Glance...
• New Digital Fuel Injection (DFI) system
• New Showa Separate Function Fork (SFF) divides spring and damping functions; springing in the right leg and damping in left provide less friction, better performance and easier adjustability
• Increased engine performance via higher compression and exhaust/intake changes
• High-performance piston featuring Bridged Box-bottom design
• Stainless steel exhaust features longer header section and larger-volume muffler
• Revised suspension settings front and rear aimed at race-experienced riders
Higher Performing, High-revving Engine
• 249cc, liquid-cooled, four-stroke, four-valve, single-cylinder DOHC engine delivers hard-hitting power across the rpm range
• Modified intake valve timing and cam profile for increased valve lift improves high-rpm power production
• Intake valve spring tension increased to control more radical cam timing
• Digital Fuel Injection (DFI) system allows consistent fuel delivery, quick starts and easy adjustability
• Engine tuned to achieve the widest possible torque band to maximize traction through a greater percentage of the rev range
• Race-experienced riders able to harness high-rpm performance that extends way into the over-rev
• Sprocket-style chain drive roller helps reduce the effect of driveline lash and engine braking for smoother and faster corner entries
• Crank web design features a balance factor on par with the factory racers for reduced engine vibration, smoother power delivery and increased performance in the mid-high rpm range
Digital Fuel Injection (DFI) System
• Same basic system that’s fitted to the KX450F
• 43mm throttle body assembly with 20 percent higher-flow injector than the KX450F’s injector
• Intake airflow is higher than on carburetor-equipped 2010 model
• Progressive throttle link; opens more quickly after 3/8 open position
• Simple and efficient system: No battery, fuses or relays
• Improves engine response across entire rpm range
• Offers easy engine starting
• Prevents engine hesitation after landing from jumps and other high-impact situations
• Optional Calibration Kit allows easy tunability
• Optional FI Indicator Light allows the DFI system to communicate diagnostic information
Bridged Box-bottom Piston
• Light and strong piston shares same design as the factory racers, with a revised crown for higher compression. Also features fully flush internal bracing
• Short piston pin reduces reciprocating weight
Lightweight and Efficient Top End
• Lightweight, highly rigid, titanium 31mm intake and 25mm exhaust valves reduce reciprocating weight and offer high-rpm reliability
• Ultra-light valves have extremely thin valve stems on par with those found in supersport machines; intake valves feature thick heads for increased strength
• Intake ports designed for peak performance at all rpm, especially in the high-rpm range
• Special coating applied to intake port cores during casting gives the intake ports extremely smooth surfaces and optimum intake efficiency across the rev range
• Silicon-coated head gasket provides excellent sealing
Enhanced Durability and Reliability
• Electrofusion treatment on cylinder bore improves surface oil retention, while the molybdenum coating on the cylinder bore surface helps resist scorching, further contributing to durability
• Wide big-end bearing features a thick copper plate on its cage and a long crank pin for increased reliability
• Oil pump rotors offer a high degree of reliability and durability; a large feed pump rotor maximizes oil flow, while a smaller scavenge-pump rotor reduces mechanical losses
New Stainless Steel Exhaust System
• Stainless steel construction offers extra durability
• Longer header pipe section for improved low and mid-range response
• Higher-volume muffler assembly quiets emissions to 94 dB noise regulations while retaining power production
• Joint between pipe and muffler offers excellent sealing, while a rubber damper collar on the rear silencer mount equals serious durability
Efficient Cooling System
• Thick and wide radiators are strong and offer excellent resistance to mud buildup while providing superb cooling performance
• Cylinder head water jacket routes coolant to the front of the cylinder head for even cooling
Transmission and Shifting Reliability
• Third and fourth input gears have large dogs to help prevent wear
• Revised ratchet and lever angle for more positive shifting
• Revised internal ratios for second and fourth gear better match new engine power delivery
• New 50-tooth rear sprocket helps capitalize on the engine’s torque delivery
• Strong, beefy crankcases feature additional material around the engine mounts to help increase long-term durability
• Clutch cable holder is integrated with the crankcase for accurate feel at the clutch lever
• Scavenge oil filter screen can be accessed without splitting the crankcases, facilitating easier maintenance
Quick-turning Chassis
• Utilizes a low-rigidity steering stem for lighter handling
• The KX250F’s slim and lightweight aluminum perimeter frame is composed of forged, extruded and cast parts
• Center of gravity and key dimensions such as swingarm pivot, output sprocket and rear axle locations designed to increase forward drive with minimal rear-end squat
• Upper engine mounts on head cover sides increase overall rigidity
Race-oriented Suspension
• Revised race-oriented suspension damping settings optimize front/rear balance
• New Separate Function Fork (SFF) separates springing and damping functions for less weight, better performance, less friction and easier adjustability
• Fork now allows external spring preload adjustability
• Super-hard titanium coating on the outer surface of the inner fork tubes reduces friction and improves suspension action. The increased surface hardness also helps prevent scratches and tube damage
• Friction-reducing Kashima Coat treatment on the inside of the outer fork tubes contributes to smoother suspension action
• Wrap-around fork tube guards provide greater protection for the inner tubes
• Revised shock damping settings offer increased absorption performance and greater stability on corner entry thanks to reduced rear-end kicking
• Features Kashima Coat on the inside of the shock reservoir for reduced friction and smoother suspension action
• Rear shock features dual compression adjustability, allowing high-speed and low-speed damping to be tuned separately
Superior Rear-wheel Traction
• Swingarm features optimum internal bracing and flex characteristics for improved cornering performance
• Alloy swingarm uses a cast front section, tapered hydroformed spars and forged chain adjusters
• Uni-Trak® rear suspension system mounts the suspension arm below the swingarm, allowing more rear suspension stroke and precise tuning
• Linkage ratios for the Uni-Trak rear suspension match rear shock damping settings to achieve maximum rear wheel traction
Rider Interface
• Bodywork components offer the rider a slim interface, making it easy for racers to feel comfortable and go fast
• Formed using a double-injection molding process, the two-tone shrouds offer a slim design
• Side number plates also two-toned and contribute to the slim package
• Right side panel has an added passageway to help cool the silencer
• Frame is wider at the ankles to offer better grip and narrows near the bend below the seat to allow a slim riding position
• Slim seat features firm urethane, which keeps its original shape longer
• Seat has a slip-resistant top and side surface for good grip when seated and while standing
• 50mm wide (front-to-rear) footpegs offer superb grip and feel at the pegs
• Clutch cable boot features a large quick adjuster, making it easy for riders to adjust play in the clutch cable while on the fly
• Throttle grip has a one-piece collar that provides additional stability during throttle operation
• Lightweight short-length grips feature a pattern designed to provide excellent grip
Factory-style Components
• Black alumite-coated rims, just like the factory racers
• Lightweight rims offer maximum strength and weight savings
• Thick and rigid front fender
• Rear brake pad material offers powerful braking performance
• Front and rear petal brake discs help reduce unsprung weight, and the wave shape helps clean the brake pads for more efficient braking performance
• Rear caliper guard protects caliper from damage
• Ribless rear hub and butted spokes further reduce unsprung weight
• Renthal aluminum handlebar is standard equipment
• Factory-style graphics complement the KX250F’s highly tuned performance
Additional Features
• Large front brake lever boot offers increased protection against debris
• Newly designed and more durable chain guide utilizes a thicker wear pad for longer life
• Large resin skid plate offers great protection with minimum weight
Optional Accessories
• Optional DFI Calibration Kit allows custom tuning
• Optional FI Indicator Light allows the DFI system to communicate diagnostic information
• Engine parts include magneto rotors with different inertias and a 12-tooth output sprocket
• Optional chassis parts include handlebar holder for a 1 1/8-inch handlebar, 46
• to 50-tooth aluminum and steel rear sprockets, solid petal brake rotors, different fork and shock springs and manual decompression lever and cable
• New Digital Fuel Injection (DFI) system
• New Showa Separate Function Fork (SFF) divides spring and damping functions; springing in the right leg and damping in left provide less friction, better performance and easier adjustability
• Increased engine performance via higher compression and exhaust/intake changes
• High-performance piston featuring Bridged Box-bottom design
• Stainless steel exhaust features longer header section and larger-volume muffler
• Revised suspension settings front and rear aimed at race-experienced riders
Higher Performing, High-revving Engine
• 249cc, liquid-cooled, four-stroke, four-valve, single-cylinder DOHC engine delivers hard-hitting power across the rpm range
• Modified intake valve timing and cam profile for increased valve lift improves high-rpm power production
• Intake valve spring tension increased to control more radical cam timing
• Digital Fuel Injection (DFI) system allows consistent fuel delivery, quick starts and easy adjustability
• Engine tuned to achieve the widest possible torque band to maximize traction through a greater percentage of the rev range
• Race-experienced riders able to harness high-rpm performance that extends way into the over-rev
• Sprocket-style chain drive roller helps reduce the effect of driveline lash and engine braking for smoother and faster corner entries
• Crank web design features a balance factor on par with the factory racers for reduced engine vibration, smoother power delivery and increased performance in the mid-high rpm range
Digital Fuel Injection (DFI) System
• Same basic system that’s fitted to the KX450F
• 43mm throttle body assembly with 20 percent higher-flow injector than the KX450F’s injector
• Intake airflow is higher than on carburetor-equipped 2010 model
• Progressive throttle link; opens more quickly after 3/8 open position
• Simple and efficient system: No battery, fuses or relays
• Improves engine response across entire rpm range
• Offers easy engine starting
• Prevents engine hesitation after landing from jumps and other high-impact situations
• Optional Calibration Kit allows easy tunability
• Optional FI Indicator Light allows the DFI system to communicate diagnostic information
Bridged Box-bottom Piston
• Light and strong piston shares same design as the factory racers, with a revised crown for higher compression. Also features fully flush internal bracing
• Short piston pin reduces reciprocating weight
Lightweight and Efficient Top End
• Lightweight, highly rigid, titanium 31mm intake and 25mm exhaust valves reduce reciprocating weight and offer high-rpm reliability
• Ultra-light valves have extremely thin valve stems on par with those found in supersport machines; intake valves feature thick heads for increased strength
• Intake ports designed for peak performance at all rpm, especially in the high-rpm range
• Special coating applied to intake port cores during casting gives the intake ports extremely smooth surfaces and optimum intake efficiency across the rev range
• Silicon-coated head gasket provides excellent sealing
Enhanced Durability and Reliability
• Electrofusion treatment on cylinder bore improves surface oil retention, while the molybdenum coating on the cylinder bore surface helps resist scorching, further contributing to durability
• Wide big-end bearing features a thick copper plate on its cage and a long crank pin for increased reliability
• Oil pump rotors offer a high degree of reliability and durability; a large feed pump rotor maximizes oil flow, while a smaller scavenge-pump rotor reduces mechanical losses
New Stainless Steel Exhaust System
• Stainless steel construction offers extra durability
• Longer header pipe section for improved low and mid-range response
• Higher-volume muffler assembly quiets emissions to 94 dB noise regulations while retaining power production
• Joint between pipe and muffler offers excellent sealing, while a rubber damper collar on the rear silencer mount equals serious durability
Efficient Cooling System
• Thick and wide radiators are strong and offer excellent resistance to mud buildup while providing superb cooling performance
• Cylinder head water jacket routes coolant to the front of the cylinder head for even cooling
Transmission and Shifting Reliability
• Third and fourth input gears have large dogs to help prevent wear
• Revised ratchet and lever angle for more positive shifting
• Revised internal ratios for second and fourth gear better match new engine power delivery
• New 50-tooth rear sprocket helps capitalize on the engine’s torque delivery
• Strong, beefy crankcases feature additional material around the engine mounts to help increase long-term durability
• Clutch cable holder is integrated with the crankcase for accurate feel at the clutch lever
• Scavenge oil filter screen can be accessed without splitting the crankcases, facilitating easier maintenance
Quick-turning Chassis
• Utilizes a low-rigidity steering stem for lighter handling
• The KX250F’s slim and lightweight aluminum perimeter frame is composed of forged, extruded and cast parts
• Center of gravity and key dimensions such as swingarm pivot, output sprocket and rear axle locations designed to increase forward drive with minimal rear-end squat
• Upper engine mounts on head cover sides increase overall rigidity
Race-oriented Suspension
• Revised race-oriented suspension damping settings optimize front/rear balance
• New Separate Function Fork (SFF) separates springing and damping functions for less weight, better performance, less friction and easier adjustability
• Fork now allows external spring preload adjustability
• Super-hard titanium coating on the outer surface of the inner fork tubes reduces friction and improves suspension action. The increased surface hardness also helps prevent scratches and tube damage
• Friction-reducing Kashima Coat treatment on the inside of the outer fork tubes contributes to smoother suspension action
• Wrap-around fork tube guards provide greater protection for the inner tubes
• Revised shock damping settings offer increased absorption performance and greater stability on corner entry thanks to reduced rear-end kicking
• Features Kashima Coat on the inside of the shock reservoir for reduced friction and smoother suspension action
• Rear shock features dual compression adjustability, allowing high-speed and low-speed damping to be tuned separately
Superior Rear-wheel Traction
• Swingarm features optimum internal bracing and flex characteristics for improved cornering performance
• Alloy swingarm uses a cast front section, tapered hydroformed spars and forged chain adjusters
• Uni-Trak® rear suspension system mounts the suspension arm below the swingarm, allowing more rear suspension stroke and precise tuning
• Linkage ratios for the Uni-Trak rear suspension match rear shock damping settings to achieve maximum rear wheel traction
Rider Interface
• Bodywork components offer the rider a slim interface, making it easy for racers to feel comfortable and go fast
• Formed using a double-injection molding process, the two-tone shrouds offer a slim design
• Side number plates also two-toned and contribute to the slim package
• Right side panel has an added passageway to help cool the silencer
• Frame is wider at the ankles to offer better grip and narrows near the bend below the seat to allow a slim riding position
• Slim seat features firm urethane, which keeps its original shape longer
• Seat has a slip-resistant top and side surface for good grip when seated and while standing
• 50mm wide (front-to-rear) footpegs offer superb grip and feel at the pegs
• Clutch cable boot features a large quick adjuster, making it easy for riders to adjust play in the clutch cable while on the fly
• Throttle grip has a one-piece collar that provides additional stability during throttle operation
• Lightweight short-length grips feature a pattern designed to provide excellent grip
Factory-style Components
• Black alumite-coated rims, just like the factory racers
• Lightweight rims offer maximum strength and weight savings
• Thick and rigid front fender
• Rear brake pad material offers powerful braking performance
• Front and rear petal brake discs help reduce unsprung weight, and the wave shape helps clean the brake pads for more efficient braking performance
• Rear caliper guard protects caliper from damage
• Ribless rear hub and butted spokes further reduce unsprung weight
• Renthal aluminum handlebar is standard equipment
• Factory-style graphics complement the KX250F’s highly tuned performance
Additional Features
• Large front brake lever boot offers increased protection against debris
• Newly designed and more durable chain guide utilizes a thicker wear pad for longer life
• Large resin skid plate offers great protection with minimum weight
Optional Accessories
• Optional DFI Calibration Kit allows custom tuning
• Optional FI Indicator Light allows the DFI system to communicate diagnostic information
• Engine parts include magneto rotors with different inertias and a 12-tooth output sprocket
• Optional chassis parts include handlebar holder for a 1 1/8-inch handlebar, 46
• to 50-tooth aluminum and steel rear sprockets, solid petal brake rotors, different fork and shock springs and manual decompression lever and cable
YAMAHA YZF-R1 LE (2010)
The new YZF-R1 LE sports Valentino Rossi livery just like his YZF-M1 MotoGP bike, but will come in very limited numbers.
MotoGP Technology with looks to match.
The new 2010 Yamaha YZF-R1LE not only gives you much of Valentino Rossi's championship technology, but also his championship look and style. The R1 is the first ever production motorcycle with a crossplane crankshaft. The Result? Outrageous torque and raw, high-rpm power providing incredibly smooth power delivery out of the corners. While the bold Fiat Yamaha team graphics provide incredibly smooth style.
Specifications
MSRP* $14,500 (Fiat Yamaha Team Graphics) Available from January 2010
Engine
Type 998cc, liquid-cooled 4-cylinder DOHC 16 valves (titanium intake valves)
Bore x Stroke 78.0mm X 52.2mm
Compression Ratio 12.7:1
Fuel Delivery Fuel Injection with YCC-T and YCC-I
Ignition TCI: Transistor Controlled Ignition
Transmission 6-speed w/multiplate slipper clutch
Final Drive #530 O-ring chain
Chassis
Suspension/Front 43mm inverted fork; fully adjustable, 4.7-in travel
Suspension/Rear Single shock w/piggyback reservoir; 4-way adjustable, 4.7-in travel
Brakes/Front Dual 310mm disc; radial-mount forged 6-piston calipers
Brakes/Rear 220mm disc; single-piston caliper
Tires/Front 120/70-ZR17
Tires/Rear 190/55ZR17
Dimensions
Length 81.5 in
Width 28.1 in
Height 44.5 in
Seat Height 32.8 in
Wheelbase 55.7 in
Rake (Caster Angle) 24.0°
Trail 4.0 in
Fuel Capacity 4.8 gal
Dry Weight 454 lb
Other
Primary Reduction Ratio 65/43 (1.512)
Secondary Reduction Ratio 47/17 (2.765)
Gear Ratio - 1st Gear 38/15 (2.533)
Gear Ratio - 2nd Gear 33/16 (2.063)
Gear Ratio - 3rd Gear 37/21 (1.762)
Gear Ratio - 4th Gear 35/23 (1.522)
Gear Ratio - 5th Gear 30/22 (1.364)
Warranty 1 Year (Limited Factory Warranty)
Gear Ratio - 6th Gear 33/26 (1.269)
Saturday, October 2, 2010
honda cb600 type model wallpaper
3 kind type motorcycle from honda the famous type in this year
motorcycle Honda VFR BLACK EDITION Type
motor honda cb600RR Type
motorcycle honda cb600f hornet models
2 model - motor honda cb600 type model wallpaper
MV Agusta F4 Senna wallpaper
MV Agusta F4 Senna wallpaper
cool motorcycle Agusta Senna type models
fitur speedometer future concept design
MV Agusta F4 Senna motorcycle wallpaper
tag : MV Agust, motor cycle wallpaper, Minerva.
Reader Ride. A Portland Oregon Custom Cafe.
Phil Writes in:
Hi,
My name is Phil G. and i live in Portland Or. I would like to share some pics of my 71 cb750. This has been my project for the last 2 1/2 years. I would like to sit here and tell you that i did it all myself but i have to give credit were credit is due. While the over all concept and design of the bike was all me there are a few very important elements to it that would not have been possible without help from some very talented friends of mine so i have to say thanks to Sam Hill for welding the custom oil tank and the 5" stretch into the fuel tank, and to Sean Smith for laying down the beautiful black paint, Paul Burdette for the stage 3 port job and general engine building help, Ginger Mccabe of New Church Customs for the seat pad, and to Deon Staffelbach for the awesome photography,other than that i pretty much did everything myself.
here is a list of mods and custom parts
engine bored out to 850
stage three ported head
super flow valves
webcam 63a grind
cyclex super rods
balanced and lightened crank and rotor
under cut tranny
all new bearings and chains inside
cr 29 carbs
custom aluminum oil tank
stock fuel tank stretched 5" with knee dents
custom rear sets (modeled after dunstall rear sets from the 70's)
custom s.s. muffler
Anyway, thanks for looking
Phil
My pleasure Phil. Thanks for sharing!
Hi,
My name is Phil G. and i live in Portland Or. I would like to share some pics of my 71 cb750. This has been my project for the last 2 1/2 years. I would like to sit here and tell you that i did it all myself but i have to give credit were credit is due. While the over all concept and design of the bike was all me there are a few very important elements to it that would not have been possible without help from some very talented friends of mine so i have to say thanks to Sam Hill for welding the custom oil tank and the 5" stretch into the fuel tank, and to Sean Smith for laying down the beautiful black paint, Paul Burdette for the stage 3 port job and general engine building help, Ginger Mccabe of New Church Customs for the seat pad, and to Deon Staffelbach for the awesome photography,other than that i pretty much did everything myself.
here is a list of mods and custom parts
engine bored out to 850
stage three ported head
super flow valves
webcam 63a grind
cyclex super rods
balanced and lightened crank and rotor
under cut tranny
all new bearings and chains inside
cr 29 carbs
custom aluminum oil tank
stock fuel tank stretched 5" with knee dents
custom rear sets (modeled after dunstall rear sets from the 70's)
custom s.s. muffler
Anyway, thanks for looking
Phil
My pleasure Phil. Thanks for sharing!
HONDA SPORTY concept design cool
threre 2 models HONDA motorcycle consept design. more futuristic consept. suitable for youngman and sporty cool generation.
new HONDA sphere concept detail. when will release on the road. realy extreme concept.
Video. History of the Britten
When I watch this it just makes me feel like such a lazy hack. I'm complaining about finding time to put in to my modest project and guys like this just build revolutionary, Daytona winning machines.... I'm such a freaking slackass.
Reader Ride. Sweet Honda Hawk GT.
Jack Michaud Writes in:
Hi,
My dad turned me on to your blog. Nice stuff! Here's a pic of my 1989 Honda Hawk 650GT. Why Honda gifts this market segment to Suzuki I'll never know!
I couldn't agree more. This bike was years ahead of the SV and they gave just up on it too soon. Damm shame.
Hi,
My dad turned me on to your blog. Nice stuff! Here's a pic of my 1989 Honda Hawk 650GT. Why Honda gifts this market segment to Suzuki I'll never know!
I couldn't agree more. This bike was years ahead of the SV and they gave just up on it too soon. Damm shame.
Friday, October 1, 2010
Nice BMW R100 I Saw At The Mall Yesterday...
Grabbed a quick cell phone shot of this nice rider. I didn't get to meet the owner.
Interesting Reader Submittal. VF500 Magna Tracker.
Paul Robinson sends in a pic of his interesting build.
Hmmm... There's a lo of potential here. I never thought of these bikes as tracker material. There's a million of them out there too at affordable prices. Just saying..
Hmmm... There's a lo of potential here. I never thought of these bikes as tracker material. There's a million of them out there too at affordable prices. Just saying..
Subscribe to:
Posts (Atom)
