YAMAHA VEGA-ZR DB 2010 Specifications and Pictures

2010 YAMAHA VEGA-ZR DB PICTURES

2010 YAMAHA VEGA-ZR DB - BLACK

Chassis
Frame Type: Steel Tube Underbone
Suspension Front: Telescopic Fork
Rear Suspension: Swing Arm
Brakes Front: Hydraulic Disc / Tromol
Rear brakes: Tromol
Tires Front: 70/90-17M/C38P
Rear tires: 80/90-17M/C44P

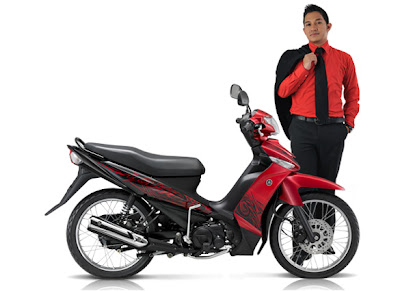

2010 YAMAHA VEGA-ZR DB - RED

Electricity
Front Lamp: 12V, 32.0W / 32.0W x 1
Sein Home Lighting: 12V, 10.0W x 2
Sein Rear Lamp: 12V, 10.0W x 2
Brake lights: 12V, 5.0W / 21.0W x 1
Beterai: YB5L-B/GM5Z-3B / 12V, 5.0Ah
Spark plug: NGK/C6HSA / 0.6-0.7 mm
Ignition system: DC. CDI
Fuse: 10.0A

Dimension
Length x Width x Height: 1930 x 675 x 1055 mm
Seat Height: 770 mm
Distance Between Wheels: 1235 mm
Distance to Land: 126 mm
Tank Capacity: 4.2 lt
Fill Weight: 97.0 kg
Empty Weight:

2010 YAMAHA VEGA-ZR DB - GREY


2010 YAMAHA VEGA-ZR DB - SPECIFICATIONS :

Machine
Type of Engine: 4 Step Water Cooled, SOHC
Step diameter: 50.0 x 57.9 mm
Cylinder Volume: 113.7 cc
The composition of Cylinders: Forward-Inclined Single Cylinder
Compression Comparison: 9:30: 1
Max Power: 6.0 Kw/7.500 rpm
Max torque: 3.8 N.m/4.500 rpm
Lubrication system:
Engine oil:
Radiator:
Carburetor: Mikuni VM 17SH X 1
Slow rotation:
Air filter: Dry Element
Transmission: 4-Speed Constant Mesh
Clutch: Wet, Multiple Disc & Centrifugal Automatic
Caster / Trail:
Dental Ratio:
Starter System: Electric & Kick Starter

Price : Rp. 11.850.000,-
Harga On The Road untuk wilayah Jakarta dan sekitarnya.
